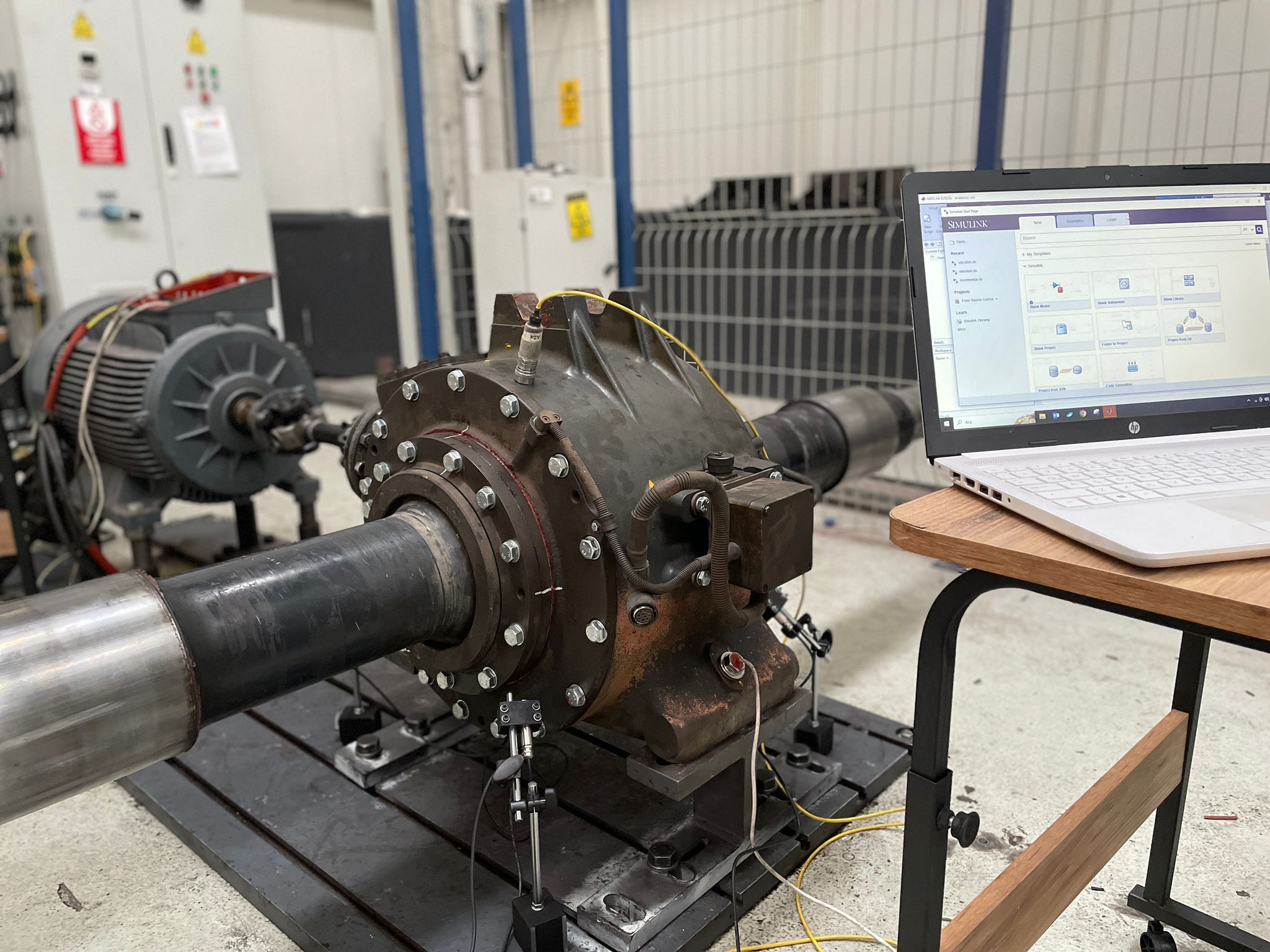

MATLAB-based test system delivered to TMS Motor in 2023 for validating train gearbox performance, durability and behaviour under operating conditions, acquiring analog sensor data via a processor for real-time monitoring and analysis.
MATLAB-based test system delivered to TMS Motor in 2023 for validating train gearbox performance, durability and behaviour under operating conditions, acquiring analog sensor data via a processor for real-time monitoring and analysis.
The gearbox is a critical train component that transfers power from the motor to the wheels. Before a train enters service, its gearbox is rigorously evaluated by this test system to confirm that it can withstand operating conditions and meet the expected performance levels. Planck Signaling completed and delivered the system to TMS Motor in 2023 for use in their gearbox test operations.
An algorithm designed in MATLAB acquires analog signals from the sensors, processes them through a processor and visualises the results. Data can be monitored in real time and exported in raw form across different output formats for further analysis.
Test requirements analysed with TMS Motor; sensor layout, processor architecture and MATLAB algorithm designed for gearbox testing.
MATLAB-based data acquisition and processing algorithm developed; sensors and processor integrated for real-time analog data handling.
System validated through durability and performance tests; data recording, analysis and visualisation outputs verified against acceptance criteria.
Test system delivered to TMS Motor for use in train gearbox testing operations; commissioning and handover completed.
